Thermal Transfer Overprinter

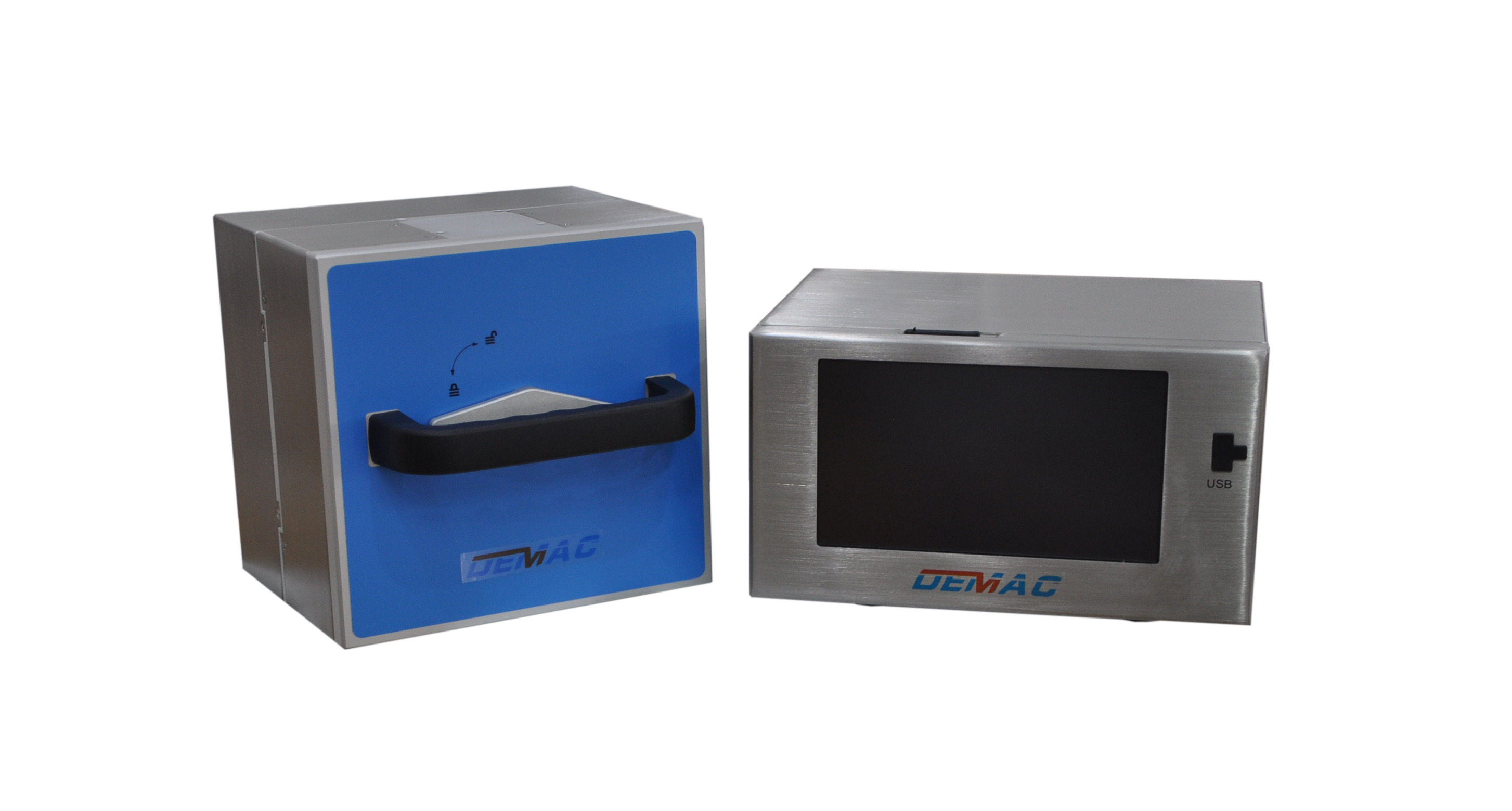

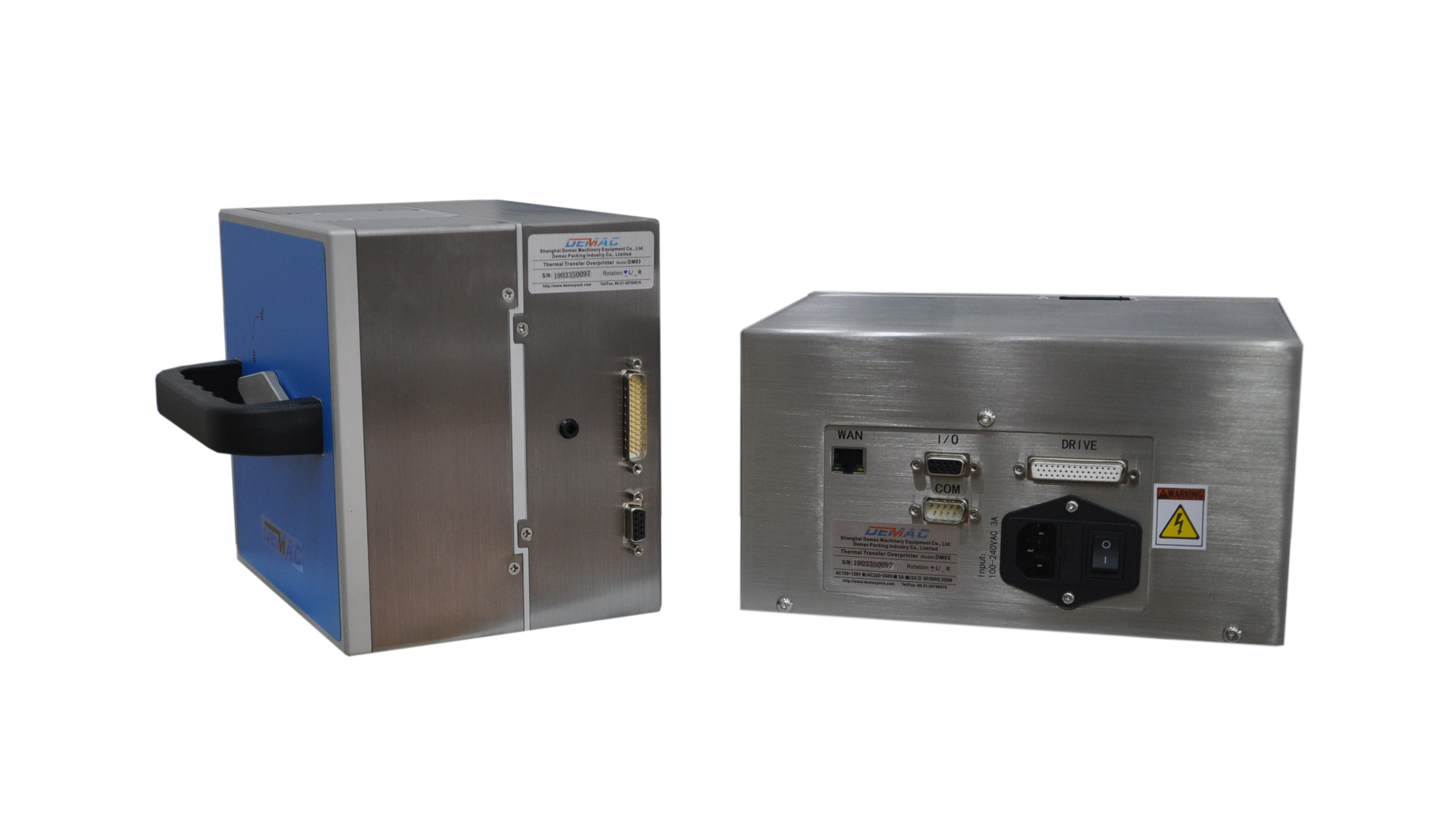

DM03 Thermal Transfer Overprinter

DM03 Thermal Transfer Overprinter
  • One of the world's best cost-effctive smart coding machines, provide excellent solutions to soft-packaging coding in wide range of fields like food,pharmacy,daily use chemicals,seeds,daily use paper and financial bill.
  • 300 dpi resolution improves the cosmetic level of your packaging.
  • Supporting for printing real-time date,time and batch No., easy-to-learn editing software helps to edit print text easily as you want, and supports 600 meter ribbon reducing the replacement frequency.
  • No damage to package ,extending the valid period,a clear mark avoids the product being removed from the goods shelf at an early time.
  • Supported by 32mm&53mm print head,and several sizes ribbons (22,25,30,33,50mm width)can meet variable demands of printing,print gap can be as small as 0.5mm.
  • Cassette protect the ribbon and keeps it clean,ensuring the  safety of production and products.






Specifications
Model DM03 Intermittent DM03 continuous DM05 Intermittent DM05 continuous
Print Head 32mm,300dpi (12points/mm) 53mm,300dpi (12pionts/mm)
Print Area 32mm*70mm 32mm*150mm 53mm*70mm 53mm*150mm
Print Speed At Fixed Speed ≦40 m/min At Fixed Speed ≦40 m/min
Print Frequency ≦300 times/min
Max Ribbon Length 500mm 600mm
Ribbon Width 22mm~33mm 35mm~55mm
Interface USB,RS232,TCP/IP
Power Supply AV110~240V 50/60Hz
Power 200W
Operation Temp. 0 ~ 40℃
Relative Humidity 10% ~ 95%(Non-condensing)
Air Supply 6 bar / 90 psi (max),dry.clean
Weight Print Unit: 8.5kg,Controller Box: 2.0kg Print Unit: 9.5kg,Controller Box: 2.0kg
Dimension(L*W*H) Print Unit: 188*190*188 (mm),
Controller Box: 175*235*110(mm)
Print Unit: 210*210*185 (mm),
Controller Box: 175*235*110(mm)
