Ink Roll Coder

DM-1100A/B Ink Roll Coder

Source：Ink Roll CoderPublished：2019-10-25

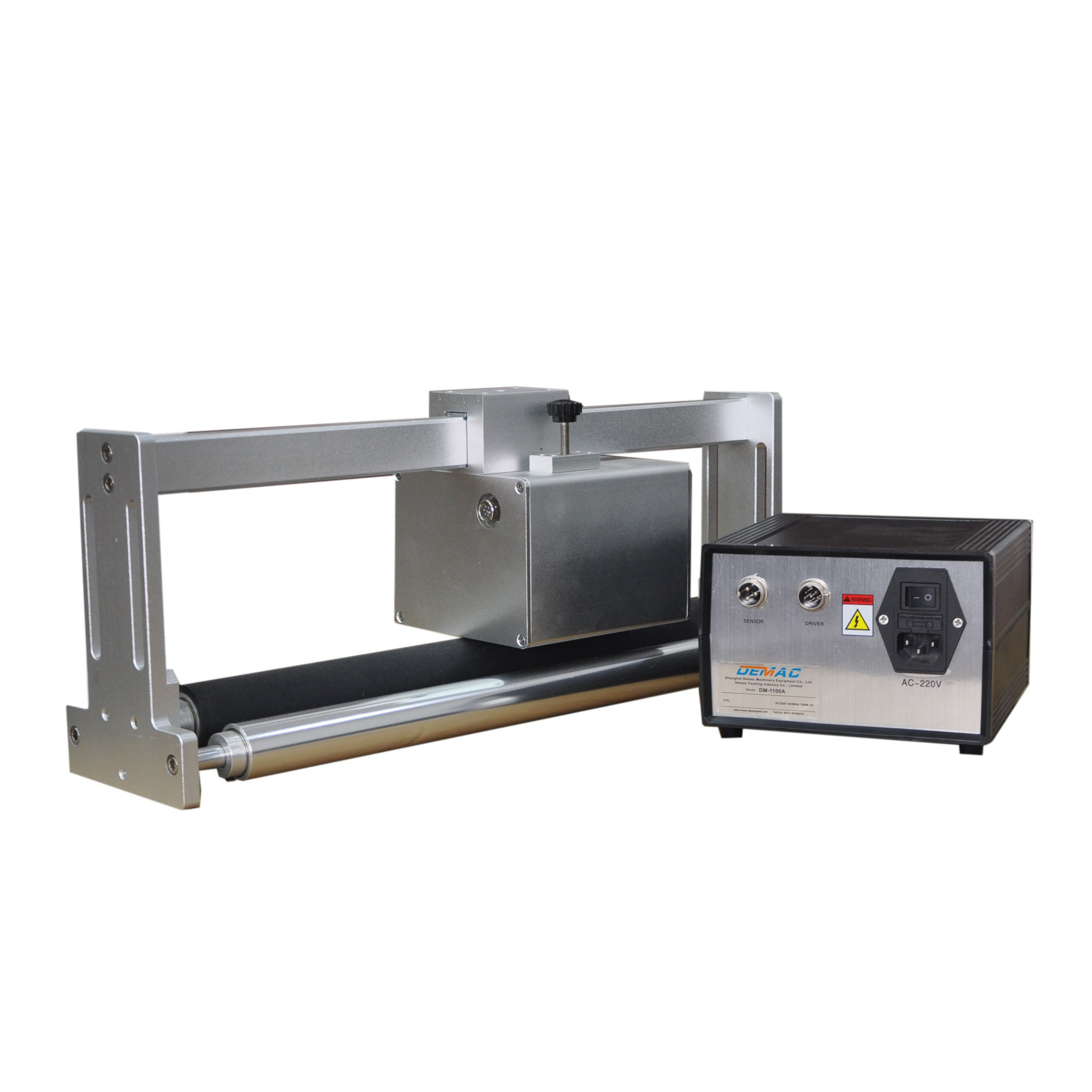

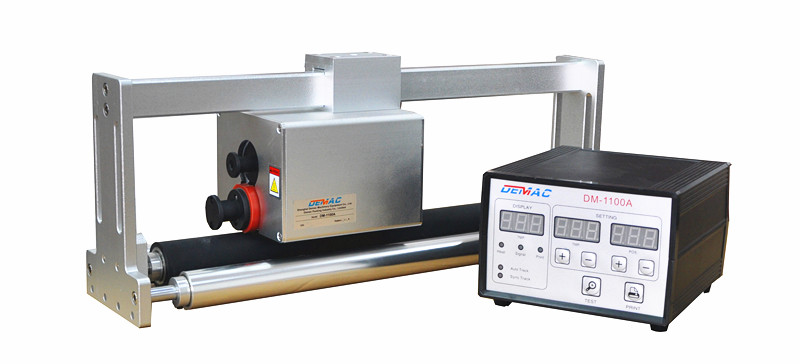

DM-1100A/B Ink Roll Coder


  • Adopting Demac core technology, ensuring the stability and clarify of the prints.
  • Adopting the updated temperature control system, which has more than 10 years longer service life than temperature control watch design.
  • Adopting Industrial-grade key panel can be used more than 300000 times.
  • Adopting friendly and simple operation interfaces, ensuring the user can learn to operate quickly.
  • DM-1100B supports the encoder mode to achieve synchronous tracking printing, which is suitable for frequent downtime, speed change packing applications.








Specifications
Model DM-1100A，DM-1100B
Print Area Axial Types:≤13 lines;   ≤20 characters per line
Radial Types:≤10 lines;  ≤13 characters per line
Print Speed ≤300 times/min
Types Axial:1.5T 2.0T 2.5 T 3.0T* 7T
Radial:3.5R 4.5R 5.5R
Hot Ink Roll Φ36*16 mm  Φ36*32 mm  Φ36*40 mm
Power AC200V±10V, 50/60Hz, 130W
Weight ~10 kg
