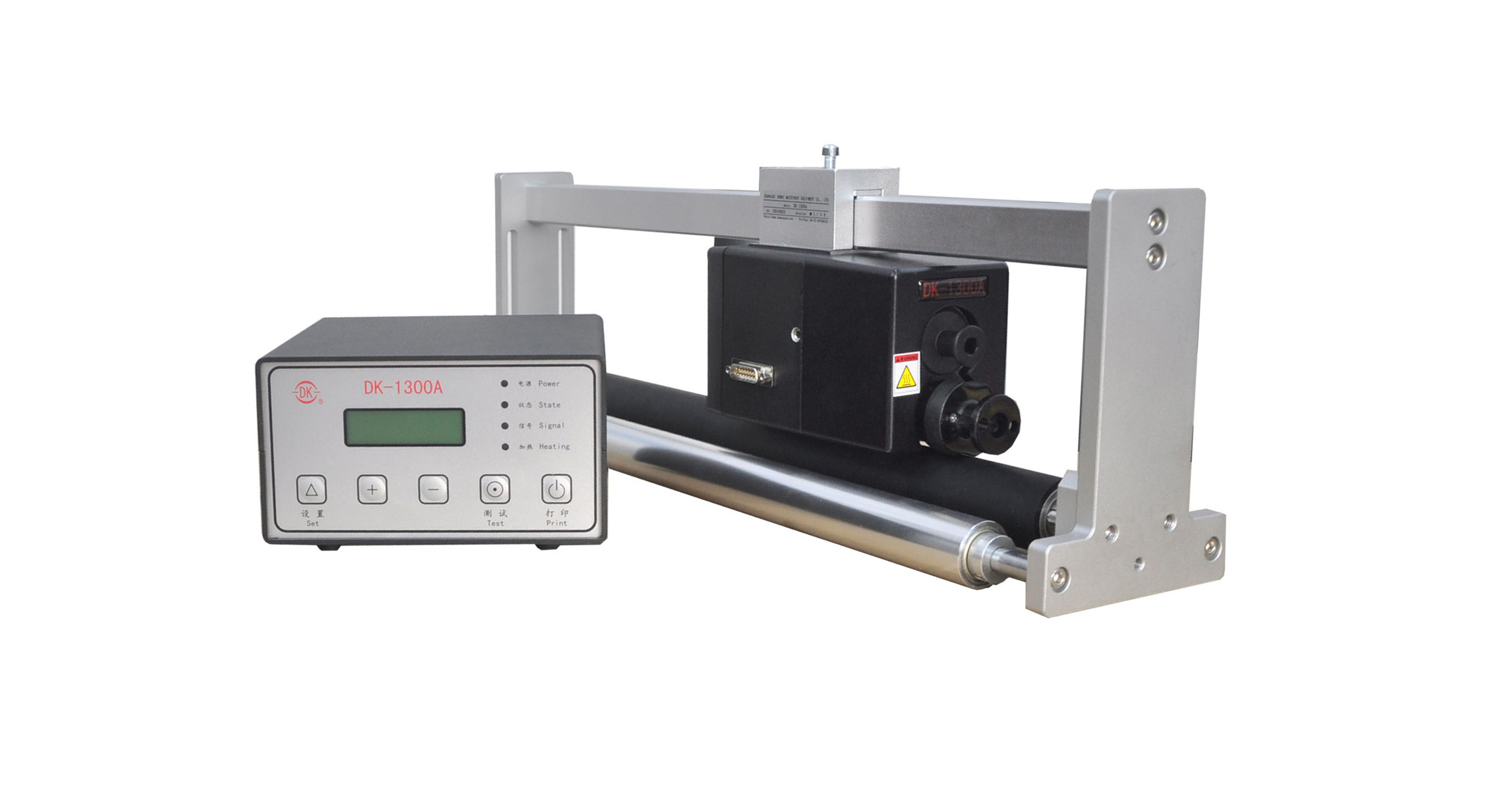

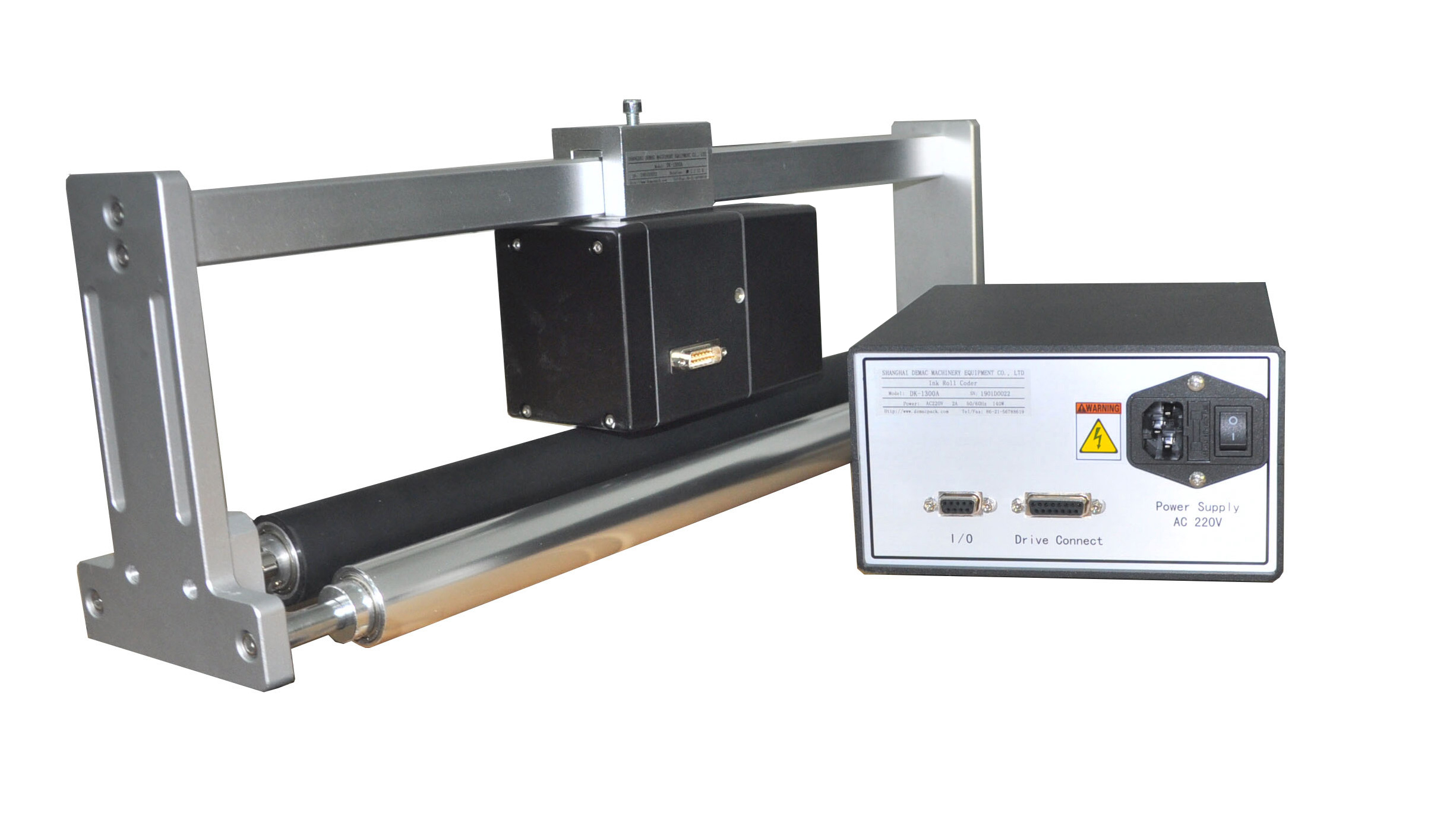

DK - 1300A Ink Roll Coder

DK - 1300A Ink Roll Coder can provide high-speed printing scheme of machine,which is driven by high-speed motor, with more stable performance and more accurate printing position.
Simple and clear LCD operation interface supports Chinese/English menu switch.
Supporting various print modes, which contains the encoder tracking mode to ensure high accuracy of printing position in order to meet the complex and changeable applications.
Supporting NPN ,PNP, PLC and other signal modes.
Supporting output functions of detecting errors and alarm,which can provide alarm function when there is missing print, repeat print, etc.

Specifications
Model	DM-1300A
Print Area	Axial Types:≤13 lines; ≤20 characters per line; Radial Types:≤10 lines; ≤13 characters per line.
Print Speed	≤900 times/min
Types	Axial:1.5T 2.0T 2.5 T 3.0T* 3.5T Radial: 3.5*3.5R 4.5R 5.5R
Print Space	≥38mm（4 groups rolls） ≥75mm（2 groups rolls）
Hot Ink Roll	Φ3616 mm; Φ3632 mm(standard) ; Φ36*40 mm(max. length)
Power Supply	AC200V±10V, 50/60Hz, 120W
Power	140W, 2A Insurance Tube
Weight	~10 kg

Suitable Material:

Plastic film PT, PE, PVC, OPP, KT, aluminum foil, bottles trademarks;
All kinds of plastic composites, plastic bags, paper (stickers, cards), leather, cloth;
Packing container bags, plastic products.
